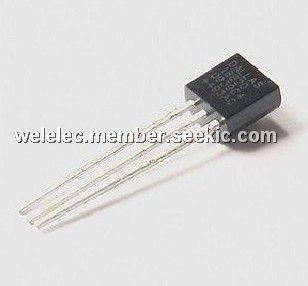

DS18B20

Digital Thermometer, TO-92, -0.5V to +6.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.85~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.85~1.00

PartNumber:: DS18B20

Brand:: Dallas Semiconductor - Maxim | Pack: TO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Thomas's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-24

From Other Seller

Part Number:DS18B20
US $0.85 - 1.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The DS18B20 Digital Thermometer provides 9 to 12-bit (configurable) temperature readings which indicate the temperature of the device. Information is sent to/from the DS18B20 over a 1-Wire interface, so that only one wire (and ground) needs to be connected from a central microprocessor to a DS18B20. Power for reading, writing, and performing temperature conversions can be derived from the data line itself with no need for an external power source. Because each DS18B20 contains a unique silicon serial number, multiple DS18B20 can exist on the same 1-Wire bus. This allows for placing temperature sensors in many different places. Applications where this feature is useful include HVAC environmental controls, sensing temperatures inside buildings, equipment or machinery, and process monitoring and control.

Parametrics

DS18B20 absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground: -0.5V to +6.0V; (2)Operating Temperature: -55℃ to +125℃; (3)Storage Temperature: -55℃ to +125℃.

Features

DS18B20 features: (1)Unique 1-Wire interface requires only one port pin for communication; (2)Multidrop capability simplifies distributed temperature sensing applications; (3)Requires no external components; (4)Can be powered from data line. Power supply range is 3.0V to 5.5V; (5)Zero standby power required; (6)Measures temperatures from -55℃ to +125℃. Fahrenheit equivalent is -67°F to +257°F; (7)±0.5℃ accuracy from -10℃ to +85℃; (8)Thermometer resolution is programmable from 9 to 12 bits.
