Product Summary

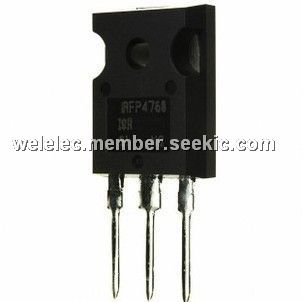

IRFP4768 is an international rectifier. The applications of the IRFP4768 are: High Efficiency Synchronous Rectification in SMPS; Uninterruptible Power Supply; High Speed Power Switching; Hard Switched and High Frequency Circuits.
Parametrics
IRFP4768 absolute maximum ratings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 93A; (2)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 66A; (3)IDM Pulsed Drain Current: 370A; (4)PD @TC = 25℃ Maximum Power Dissipation: 520 W; (5)Linear Derating Factor: 3.4 W/℃; (6)VGS Gate-to-Source Voltage: ±20 V; (7)dv/dt Peak Diode Recovery: 24V/ns.
Features
IRFP4768 features: (1)Improved Gate, Avalanche and Dynamic dV/dt Ruggedness; (2)Fully Characterized Capacitance and Avalanche SOA; (3)Enhanced body diode dV/dt and dI/dt Capability; (4)Lead-Free.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IRFP4768PBF |
International Rectifier |
MOSFET MOSFT 250V 83A 21mOhm 195nC Qg |
Data Sheet |
|
|
||||||||||||
 |
IRFP4768-PBF |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
