Product Summary

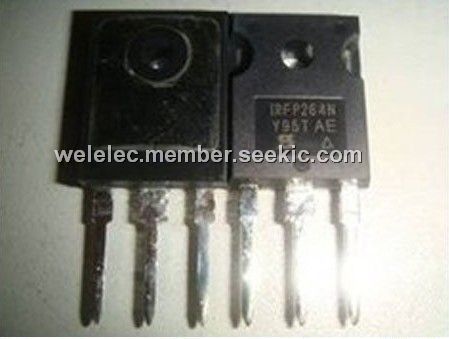

The IRFP264N is a HEXFET Power MOSFET from International Rectifier which utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that the IRFP264N is well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The TO-247 package of IRFP264N is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220 devices. The TO-247 is similar but superior to the earlier TO-218 package because of its isolated mounting hole.

Parametrics

IRFP264N absolute maximum ratings: (1)Continuous Drain Current, VGS @ 10V: 44 A; (2)ID @ TC = 100℃, Continuous Drain Current, VGS @ 10V: 31 A; (3)Pulsed Drain Current:170; (4)PD @TC = 25℃, Power Dissipation: 380 W; (5)Linear Derating Factor: 2.6 W/℃; (6)Gate-to-Source Voltage: 20 V; (7)Single Pulse Avalanche Energy: 520 mJ; (8)Avalanche Current: 25 A; (9)Repetitive Avalanche Energy: 38 mJ; (10)Peak Diode Recovery dv/dt: 8.7 V/ns; (11)Operating Junction and Storage Temperature Range: -55 to + 175; (12)Soldering Temperature, for 10 seconds: 300 (1.6mm from case ) ℃.

Features

IRFP264N features: (1)Advanced Process Technology; (2)Dynamic dv/dt Rating; (3)175℃ Operating Temperature; (4)Fast Switching; (5)Fully Avalanche Rated; (6)Ease of Paralleling; (7)Simple Drive Requirements.

Diagrams

IRFP264N Switching Time Test Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRFP264N
IRFP264N

Vishay/Siliconix

MOSFET N-Chan 250V 44 Amp

Data Sheet

Negotiable
IRFP264N, SiHFP264N
IRFP264N, SiHFP264N

Other


Data Sheet

Negotiable
IRFP264NPBF
IRFP264NPBF

Vishay/Siliconix

MOSFET N-Chan 250V 44 Amp

Data Sheet

Negotiable
