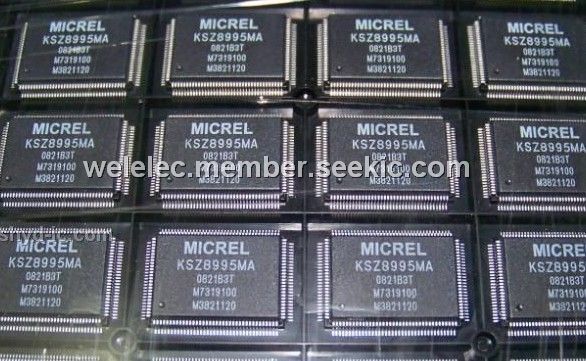

KSZ8995MA

Layer-2 managed switch, QFP128, –0.5V to +2.4V, Shared memory, Dual MII configuration

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~3.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.00~3.50

PartNumber:: KSZ8995MA

Brand:: Micrel Semiconductor - Micrel | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Thomas's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-22

From Other Seller

Part Number:KSZ8995MA
US $3.00 - 3.50
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The KSZ8995MA is a highly integrated Layer-2 managed switch with optimized BOM (Bill of Materials) cost for low port count, cost-sensitive 10/100Mbps switch systems. The KSZ8995MA also provides an extensive feature set such as tag/port-based VLAN, QoS (Quality of Service) priority, management, MIB counters, dual MII interfaces and CPU control/data interfaces to effectively address both current and emerging Fast Ethernet applications. The applications of the KSZ8995MA include Broadband gateway/firewall/VPN, Integrated DSL or cable modem multi-port router, Wireless LAN access point plus gateway, Home networking expansion, Standalone 10/100 switch, Hotel/campus/MxU gateway, Enterprise VoIP gateway/phone, FTTx customer premise equipment, Managed media converter.

Parametrics

KSZ8995MA absolute maximum ratings: (1)Supply Voltage: (VDDAR, VDDAP, VDDC, VDDAT): –0.5V to +2.4V, (VDDIO): –0.5V to +4.0V; (2)Input Voltage: –0.5V to +4.0V; (3)Output Voltage: –0.5V to +4.0V; (4)Lead Temperature (soldering, 10 sec.): 270℃; (5)Storage Temperature (TS): –55℃ to +150℃.

Features

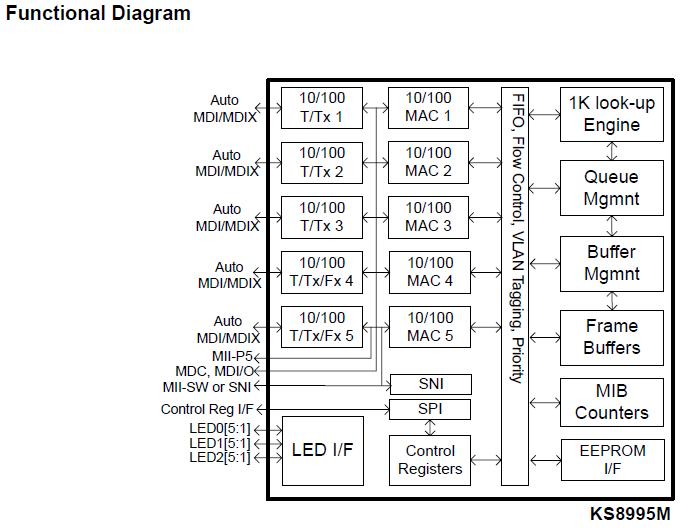

KSZ8995MA features: (1)Integrated switch with five MACs and five Fast Ethernet transceivers fully compliant to IEEE 802.3u standard; (2)Shared memory based switch fabric with fully nonblocking configuration; (3)1.4Gbps high-performance memory bandwidth; (4)10BaseT, 100BaseTX and 100BaseFX modes (FX in Ports 4 and 5); (5)Dual MII configuration: MII-Switch (MAC or PHY mode MII) and MII-P5 (PHY mode MII); (6)IEEE 802.1q tag-based VLAN (16 VLANs, full-range VID) for DMZ port, WAN/LAN separation or inter-VLAN switch links.
