Product Summary
The MAX3232ESE transceiver has a proprietary low-dropout transmitter output stage enabling true RS-232 performance from a 3.0V to 5.5V supply with a dual charge pump. The MAX3232ESE requires only four small 0.1μF external chargepump capacitors. It is guaranteed to run at data rates of 120kbps while maintaining RS-232 output levels. The applications of the MAX3232ESE include Notebook, Subnotebook, and Palmtop Computers, High-Speed Modems, Battery-Powered Equipment, Hand-Held Equipment, Peripherals, Printers.
Parametrics
MAX3232ESE absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V+: -0.3V to +7V; (3)V-: +0.3V to -7V; (4)V+ + V-: +13V; (5)Input Voltages: T_IN, SHDN, EN: -0.3V to +6V, MBAUD: -0.3V to (VCC + 0.3V), R_IN: ±25V; (6)Output Voltages: T_OUT: ±13.2V, R_OUT: -0.3V to (VCC + 0.3V); (7)Short-Circuit Duration T_OUT: Continuous; (8)Continuous Power Dissipation (TA = +70℃): 16-Pin Plastic DIP (derate 10.53mW/℃ above +70℃): 842mW, 16-Pin Narrow SO (derate 8.70mW/℃ above +70℃): 696mW; (9)Operating Temperature Ranges: -40℃ to +85℃; (10)Storage Temperature Range: -65℃ to +150℃; (11)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX3232ESE features: (1)Low Supply Current: 300μA (MAX3222/MAX3232/MAX3241), 500μA (MAX3237); (2)Guaranteed Data Rate: 120kbps (MAX3222/MAX3232/MAX3241), 250kbps (MAX3237—Normal Operation), 1Mbps (MAX3237—MegaBaud Operation); (3)1μA Low-Power Shutdown with Receivers Active (MAX3222/MAX3237/MAX3241); (4)Flow-Through Pinout (MAX3237); (5)Meets EIA/TIA-232 Specifications Down to 3.0V; (6)Guaranteed Mouse Driveability (MAX3241).
Diagrams

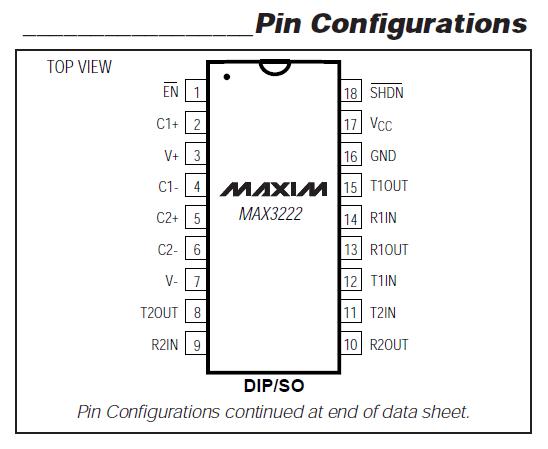

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX3232ESE |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MAX3232ESE+T |
Maxim Integrated Products |
RS-232 Interface IC 3-5.5V 1Mbps Transceiver |
Data Sheet |
|
|
||||||||||||
|
MAX3232ESE-T |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX3232ESE+ |
Maxim Integrated Products |
RS-232 Interface IC 3-5.5V 1Mbps Transceiver |
Data Sheet |
|
|
||||||||||||
