Product Summary

The SCA100T-D01 is an Inclinometer. The applications of the SCA100T-D01 include 2-axis platform levelling, Inclination based position measurement, Tilt measurement with cross-axis compensation, 360° vertical orientation measurement.

Parametrics

SCA100T-D01 absolute maximum ratings: (1)Acceleration (powered or non-powered): 20 000 g; (2)Supply voltage: -0.3 V to +5.5 V V; (3)Voltage at input/output pins: -0.3 V to (Vdd+0.3 V) V; (4)Temperature range: -55 to 125 ℃.

Features

SCA100T-D01 features: (1)2-axis inclination measurement (X and Y); (2)Available ranges ±0.5 g (±30°), ±1.0 g (±90°); (3)Over damped frequency response by Sensing Element (-3 dB @ 8 to 28 Hz); (4)0.003° resolution (10 Hz BW, analog output); (5)Advanced internal and external connection failure detection; (6)Digitally activated electrostatic sensing element self test; (7)Continuous memory parity check; (8)Single +5 V supply; ratiometric voltage output; (9)Serial Peripheral Interface (SPI) compatible; (10)Internal temperature sensor, accessible via SPI; (11)Lead-free refl ow solderable lead-free component.

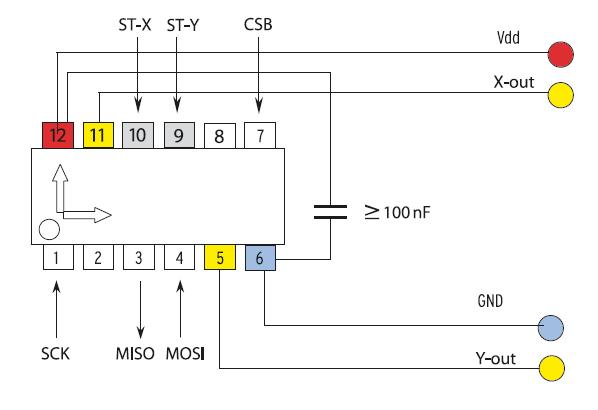

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SCA100T-D01
SCA100T-D01

INCLINOMETER DUAL 0.5G DIL12 SMD
Data Sheet
0-1: $38.07
1-10: $36.26
10-25: $34.53
25-50: $32.89
SCA100T-D01-1
SCA100T-D01-1
Murata
Vibration & Tilt Sensors 2-Axis Inclinometer Analog
Data Sheet
0-1: $43.31
1-10: $34.64
10-25: $31.49
25-100: $28.63
