Product Summary

The TCRT5000L is a reflective sensor which includes an infrared emitter and phototransistor in a leaded package which blocks visible light. The package includes two mounting clips. It is the long lead version. The applications of the TCRT5000L include Position sensor for shaft encoder, Detection of reflective material such as paper, IBM cards, magnetic tapes etc, Limit switch for mechanical motions in VCR, General purpose - wherever the space is limited.

Parametrics

TCRT5000L absolute maximum ratings: (1)Reverse voltage: 5 V; (2)Forward current: 60 mA; (3)Forward surge current tp ≤ 10 μs: 3 A; (4)Power dissipation Tamb ≤ 25 ℃: 100 mW; (5)Junction temperature: 100 ℃.

Features

TCRT5000L features: (1)Package type: Leaded; (2)Detector type: Phototransistor; (3)Dimensions: L 10.2 mm x W 5.8 mm x H 7.0 mm; (4)Peak operating distance: 2.5 mm; (5)Operating range: 0.2 mm to 15 mm; (6)Typical output current under test: IC = 1 mA; (7)Daylight blocking filter; (8)Emitter wavelength 950 nm; (9)Lead (Pb)-free soldering released; (10)Lead (Pb)-free component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

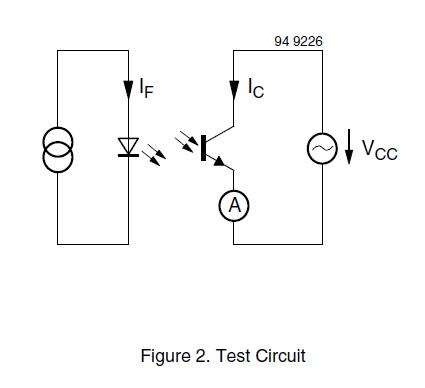

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TCRT5000L
TCRT5000L
Vishay Semiconductors
Optical Switches, Reflective, with Phototransistor Output Reflective Sensor w/Transistor Output
Data Sheet
0-1: $0.79
1-10: $0.70
10-100: $0.56
100-250: $0.49
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TCRT100
TCRT100
Other

Data Sheet
Negotiable
TCRT1000
TCRT1000
Vishay Semiconductors
Optical Switches, Reflective, with Phototransistor Output Reflective Sensor w/Transistor Output
Data Sheet
0-1: $0.63
1-10: $0.55
10-100: $0.44
100-250: $0.38
TCRT1010
TCRT1010
Vishay Semiconductors
Optical Switches, Reflective, with Phototransistor Output Reflective Sensor w/Transistor Output
Data Sheet
0-1: $0.65
1-10: $0.58
10-100: $0.45
100-250: $0.40
TCRT5000
TCRT5000
Vishay Semiconductors
Optical Switches, Reflective, with Phototransistor Output 12mm Sense 950nm
Data Sheet
0-1: $0.56
1-50: $0.52
50-100: $0.50
100-500: $0.45
TCRT5000(L)
TCRT5000(L)
Other

Data Sheet
Negotiable
TCRT5000L
TCRT5000L
Vishay Semiconductors
Optical Switches, Reflective, with Phototransistor Output Reflective Sensor w/Transistor Output
Data Sheet
0-1: $0.79
1-10: $0.70
10-100: $0.56
100-250: $0.49
