SN75176BP

Product Summary

The SN75176BP differential bus transceiver is an integrated circuit designed for bidirectional data communication on multipoint bus transmission lines. It is designed for balanced transmission lines and meet ANSI Standards TIA/EIA-422-B and TIA/EIA-485-A and ITU Recommendations V.11 and X.27. The SN75176BP combines a 3-state differential line driver and a differential input line receiver, both of which operate from a single 5-V power supply. The driver and receiver have active-high and active-low enables, respectively, that can be connected together externally to function as a direction control. The driver differential outputs and the receiver differential inputs of SN75176BP are connected internally to form differential input/output (I/O) bus ports that are designed to offer minimum loading to the bus when the driver is disabled or VCC = 0. These ports feature wide positive and negative common-mode voltage ranges, making the device suitable for party-line applications.

Parametrics

SN75176BP absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Voltage range at any bus terminal: –10 V to 15 V; (3)Enable input voltage, VI: 5.5 V; (4)Package thermal impedance, θJA: D package: 97℃/W, P package: 85℃/W, PS package: 95℃/W; (5)Operating virtual junction temperature, TJ: 150℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (7)Storage temperature range, Tstg: –65℃ to 150℃.

Features

SN75176BP features: (1)Bidirectional Transceivers; (2)Meet or Exceed the Requirements of ANSI Standards TIA/EIA-422-B and TIA/EIA-485-A and ITU Recommendations V.11 and X.27; (3)Designed for Multipoint Transmission on Long Bus Lines in Noisy Environments; (4)3-State Driver and Receiver Outputs; (5)Individual Driver and Receiver Enables; (6)Wide Positive and Negative Input/Output Bus Voltage Ranges; (7)Driver Output Capability: ±60 mA Max; (8)Thermal Shutdown Protection; (9)Driver Positive and Negative Current Limiting; (10)Receiver Input Impedance: 12 kΩ Min; (11)Receiver Input Sensitivity: ±200 mV; (12)Receiver Input Hysteresis: 50 mV Typ; (13)Operate From Single 5-V Supply.

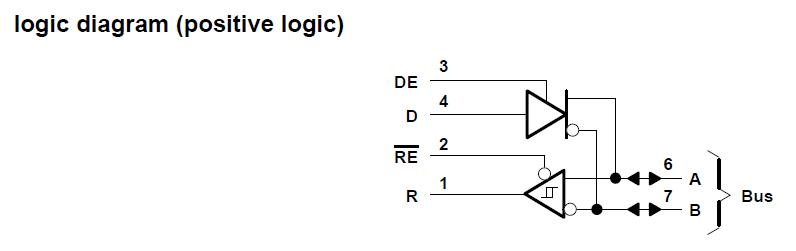

Diagrams
