Product Summary
The EP1C3T144C8N is based on a 1.5-V, 0.13-μm, all-layer copper SRAM process, with densities up to 20,060 logic elements (LEs) and up to 288 Kbits of RAM. With features like phaselocked loops (PLLs) for clocking and a dedicated double data rate (DDR) interface to meet DDR SDRAM and fast cycle RAM (FCRAM) memory requirements, the EP1C3T144C8N is a cost-effective solution for data-path applications.
Parametrics
EP1C3T144C8N absolute maximum ratings: (1)On the condition of with respect to ground, VCCINT Supply voltage: min=-0.5V, max=2.4V; VCCIO: min=-0.5V, max=4.6V ; (2)VI DC input voltage: min=-0.5V, max=4.6V; (3)IOUT DC output current, per pin: min=-25mA, max=25mA; (4)On the condition of no bias, TSTG Storage temperature: min=-65℃, max=150℃; (5)On the condition of under bias, TAMB Ambient temperature: min=-65℃, max=135℃; (6)On the condition of BGA packages under bias, TJ Junction temperature: max=135℃.
Features
EP1C3T144C8N features: 1)Up to 294,912 RAM bits (36,864 bytes); (2)Supports configuration through low-cost serial configuration device; (3)Support for LVTTL, LVCMOS, SSTL-2, and SSTL-3 I/O standards; (4)Support for 66-MHz, 32-bit PCI standard; (5)Low speed (311 Mbps) LVDS I/O support; (6)Up to two PLLs per device provide clock multiplication and phase shifting; (7)Up to eight global clock lines with six clock resources available per logic array block (LAB) row; (8)Support for external memory, including DDR SDRAM (133 MHz), FCRAM, and single data rate (SDR) SDRAM.

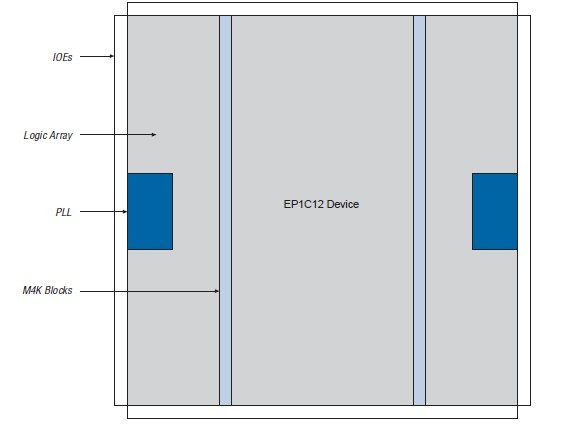

Diagrams
