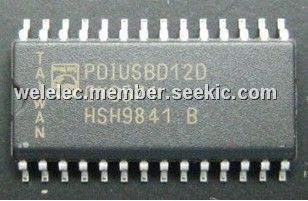

PDIUSBD12D

USB interface device, SOP28, -0.5 to +6.0 V, Fully autonomous DMA operation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.50~6.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.50~6.50

PartNumber:: PDIUSBD12D

Brand:: Philips Electronics India Limited - PHILIPS | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Thomas's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-22

From Other Seller

Part Number:PDIUSBD12D
US $5.50 - 6.50
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

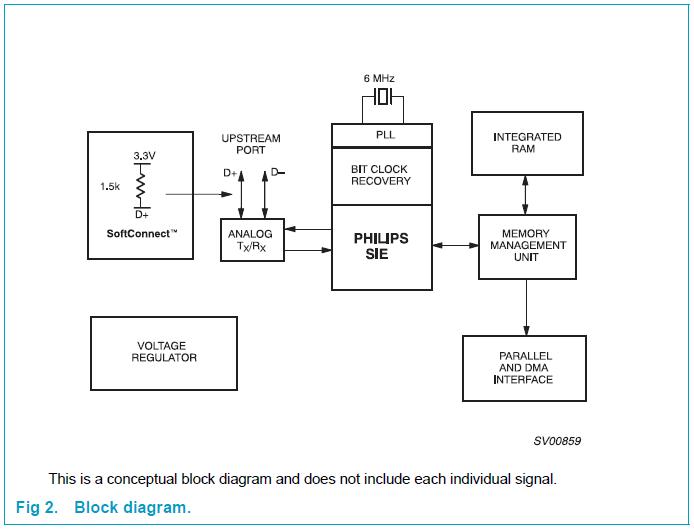

The PDIUSBD12D is a cost and feature optimized USB interface device with parallel bus. It is normally used in microcontroller based systems and communicates with the system microcontroller over the high-speed general purpose parallel interface. The PDIUSBD12D also supports local DMA transfer. This modular approach to implementing a USB interface allows the designer to choose the optimum system microcontroller from the available wide variety. This flexibility of PDIUSBD12D cuts down the development time, risks, and costs by allowing the use of the existing architecture and minimize firmware investments. This results in the fastest way to develop the most cost effective USB peripheral solution.

Parametrics

PDIUSBD12D absolute maximum ratings: (1)supply voltage: -0.5 to +6.0 V; (2)input voltage: -0.5 to VCC + 0.5 V; (3)latchup current: 100 mA at VI < 0 or VI > VCC; (4)electrostatic discharge voltage: ±2000 V at ILI < 1 μA; (5)storage temperature: -60 to +150 ℃; (6)total power dissipation: 95 mW at VCC = 5.5 V.

Features

PDIUSBD12D features: (1)Complies with the Universal Serial Bus specification Rev. 2.0 (basic speed); (2)High performance USB interface device with integrated SIE, FIFO memory, transceiver and voltage regulator; (3)Compliant with most Device Class specifications; (4)High-speed (2 Mbytes/s) parallel interface to any external microcontroller or microprocessor; (5)Fully autonomous DMA operation; (6)Integrated 320 bytes of multi-configuration FIFO memory.
