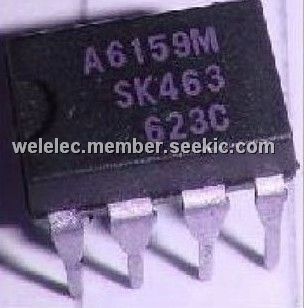

STR-A6159

SMPS Primary Switcher, DIP-8, Low Power, 35 V, Auto bias function

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.30~0.80

PartNumber:: STR-A6159

Brand:: Sanken electric - Sanken | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Thomas's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-03

From Other Seller

Part Number:STR-A6159
US $0.30 - 0.80
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The STR-A6159 is a Low Power Off-line SMPS Primary Switcher. The applications of the STR-A6159 include Battery Charger, Standby Power Supply, S.M.P.S., Controller Power Supply.

Parametrics

STR-A6159 absolute maximum ratings: (1)Control Supply Voltage, VCC: 35 V; (2)Drain-Source Voltage, VDSS: 650 V; (3)Drain Switching Current, ID: 1.8 A; (4)Peak Drain Switching Current, IDM: 1.8 A; (5)Single-Pulse Avalanche Energy, EAS: 24 mJ; (6)Start-Up-Pin Voltage Range, Vstartup: -0.3 V to +600 V; (7)OCP Voltage Range, VOCP: -0.5 V to +6 V; (8)FB/OLP Voltage Range, VFB/OLP: -0.5 V to +10 V; (9)Package Power Dissipation, PD: control (VCC x ICC(ON)): 0.15 W, MOSFET (VDSS x ID): 1.35 W, total: 1.5 W; (10)MOSFET Channel Temp., TJ: +150℃; (11)Internal Frame Temp., TF: +125℃; (12)Operating Temperature Range, TA: -20℃ to +125℃; (13)Storage Temperature Range, TS: -40℃ to +125℃.

Features

STR-A6159 features: (1)PRC: Pulse Ratio Control: (8μs fixed off-time, variable on-time); (2)Auto burst standby: (No Load Consumption <100 mW at AC264V); (3)Auto bias function: This function stabilizes operation during Auto Burst Standby mode, by preventing a Hiccup mode. The Auto Bias function forces the IC to turn on before the VCC voltage reaches VCC(OFF), thereby stabilizing the entire power supply operation.
