Product Summary
The BD9897FS is a DC-AC Inverter Control IC.
Parametrics
BD9897FS absolute maximum ratings: (1)Supply Voltage: 36 V; (2)BST pin: 40 V; (3)SW pin: 36 V; (4)BST-SW voltage difference: 7 V; (5)Operating Temperature Range: -40 to +85 ℃; (6)Storage Temperature Range: -55 to +150 ℃; (7)Maximum Junction Temperature: +150 ℃; (8)Power Dissipation: 950 mW.
Features
BD9897FS features: (1)36V High voltage process; (2)1ch control with Full-Bridge; (3)Lamp current and voltage sense feed back control; (4)Sequencing easily achieved with Soft Start Control; (5)Short circuit protection with Timer Latch; (6)Under Voltage Lock Out; (7)Mode-selectable the operating or stand-by mode by stand-by pin; (8)Synchronous operating the other BD9897FS IC’s; (9)BURST mode controlled by PWM and DC input; (10)Output liner Control by external DC voltage.

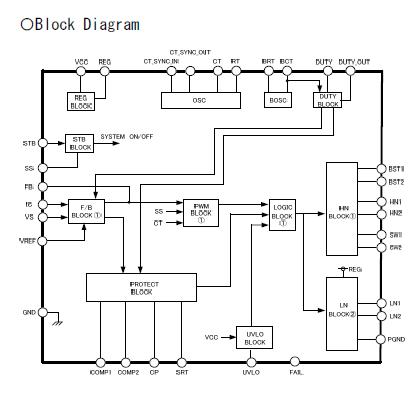

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BD9897FS-E2 |
ROHM Semiconductor |
Display Drivers & Controllers Invert. Cont. IC For Med-Lg Flat Panels |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
BD9825FV |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BD9833KV |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
BD9842FV-E2 |
ROHM Semiconductor |
DC/DC Switching Regulators 3.6-35V 100-1500kHz 2 Chan Step-Down |
Data Sheet |
|
|
||||||||||||
 |
BD9845FV-E2 |
ROHM Semiconductor |
DC/DC Switching Regulators 3.6-35V 100-1500kHz 1 Chan Step-Down |
Data Sheet |
|
|
||||||||||||
 |
BD9846FV-E2 |
|
IC REG CTRLR BUCK PWM 20-SSOP |
Data Sheet |
Negotiable |
|
||||||||||||
 |
BD9850FVM-TR |
ROHM Semiconductor |
DC/DC Switching Controllers STEP DOWN SWITCHING REGULATOR |
Data Sheet |
|
|
||||||||||||
