Product Summary

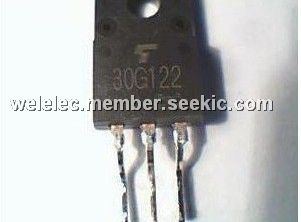

The GT30G122 Toshiba discrete IGBT is available in high-voltage and high-current ratings. It is used in inverter and power conversion circuits for such diverse applications as motor drivers, uninterruptible power supply (UPS) systems, IH cookers, plasma display panels (PDPs), strobe flashes and so on.

Parametrics

GT30G122 absolute maximum ratings: (1)VCES / Icp @3 μs: 400 V / 120 A; (2)VCE(sat) (V) Max: 2.6 V (@120 A); (3)PC (W) @Tc = 25℃: 25 W; (4)Package: TO-220SIS.

Features

GT30G122 features: (1)IGBTs also featuring fast switching; (2)Low collector-emitter saturation voltage even in the large current area; (3)IGBTs featuring a built-in diode with optimal characteristics tailored to specific applications; (4)High input impedance allows voltage drives; (5)Available in a variety of packages.
